PRO Series

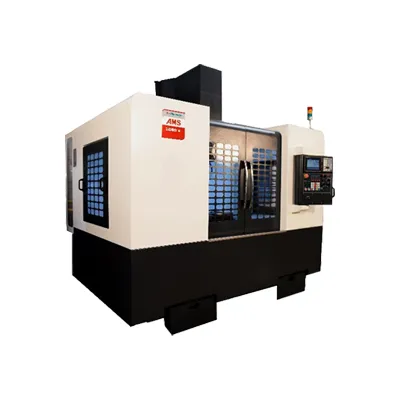

The 740V-PRO and 1060V-PRO are high-speed, compact machines equipped with a wide range of standard features, including a chip conveyor with advanced filtration, high-pressure through-spindle coolant, mist collection, front auto-doors, light curtains, and real tool load monitoring. Both models are robot-ready for seamless automation.
Request A Quote
Specifications
Specifications
| X-axis Travel |
29.5" (750 mm) |
| Y-axis Travel (spindle head) |
16.7" (425 mm) |
| Z-Axis Travel |
18.5" (470 mm) |
| Spindle Nose to Top of Pallet |
4.7" (120 mm) |
| Rapid Traverses (X, Y and Z Axes) |
1,417 ipm (36 M/min) |
| Table Size |
35.4" x 15.7" (900 x 400 mm) |
| Maximum Load on Pallet |
1,100 lbs. (500 kg) |
| Spindle Nose |
12,000 RPM |
| Spindle Drive Motor |
15 HP |
| Spindle Nose Taper |
CAT40 |
| Rapid feedrate - X axis |
30 |
| Controller |
FANUC 0iMF Plus Control w/ 10.4" Screen |
| X-axis Travel |
39.4" (1,000 mm) |
| Y-axis Travel (spindle head) |
23.6" (600 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Spindle Nose to Top of Pallet |
3.94" (100 mm) |
| Rapid Traverses (X, Y and Z Axes) |
1,575 ipm (40 M/min) |
| Table Size |
47.2" x 23.6" (1200 x 600 mm) |
| Maximum Load on Pallet |
1,760 lbs. (800 kg) |
| Spindle Nose |
12,000 RPM |
| Spindle Drive Motor |
20 HP |
| Spindle Nose Taper |
CAT40 |
| Rapid feedrate - X axis |
30 |
| Controller |
FANUC 0iMF Plus Control w/ 10.4" Screen |
