UG Series

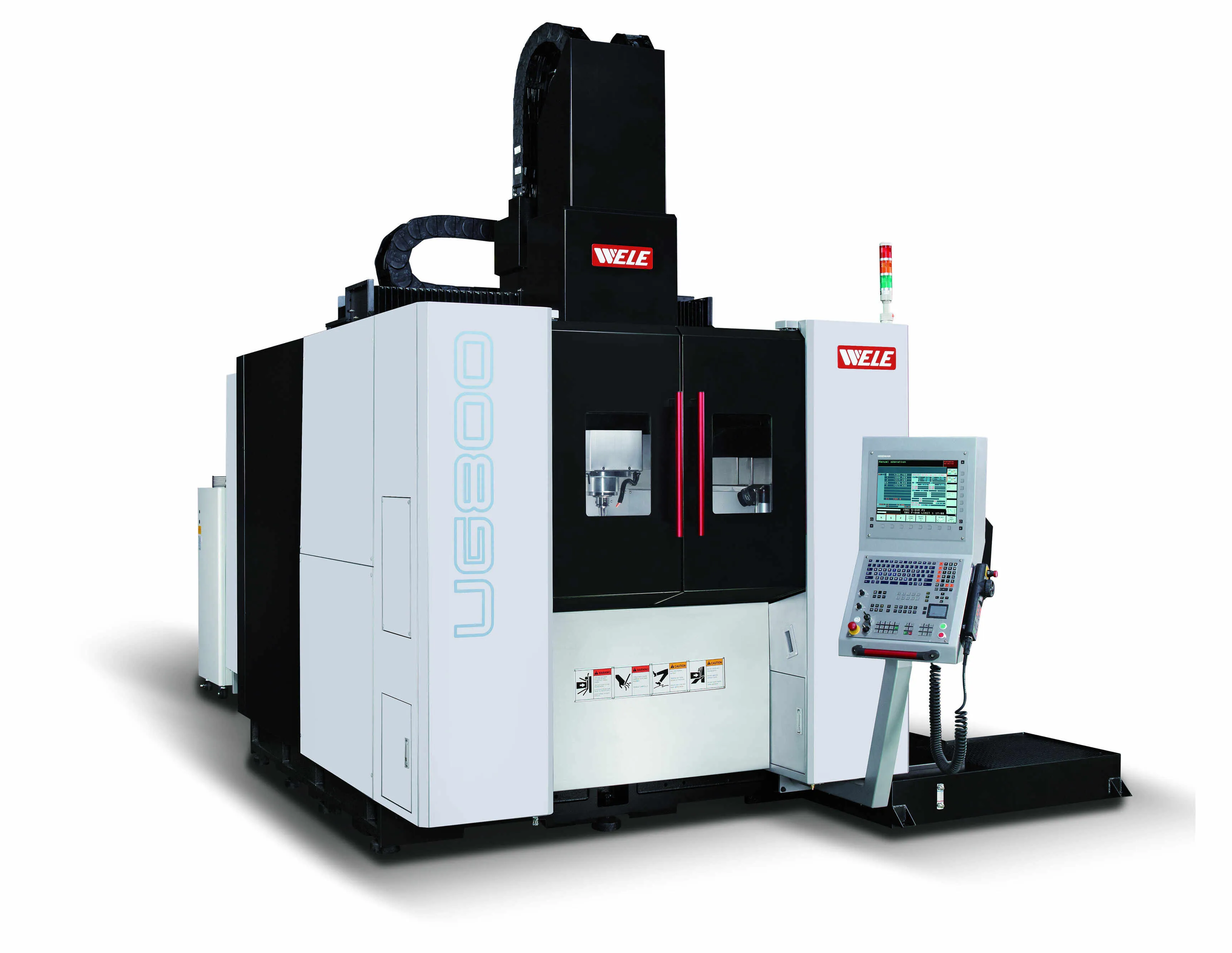

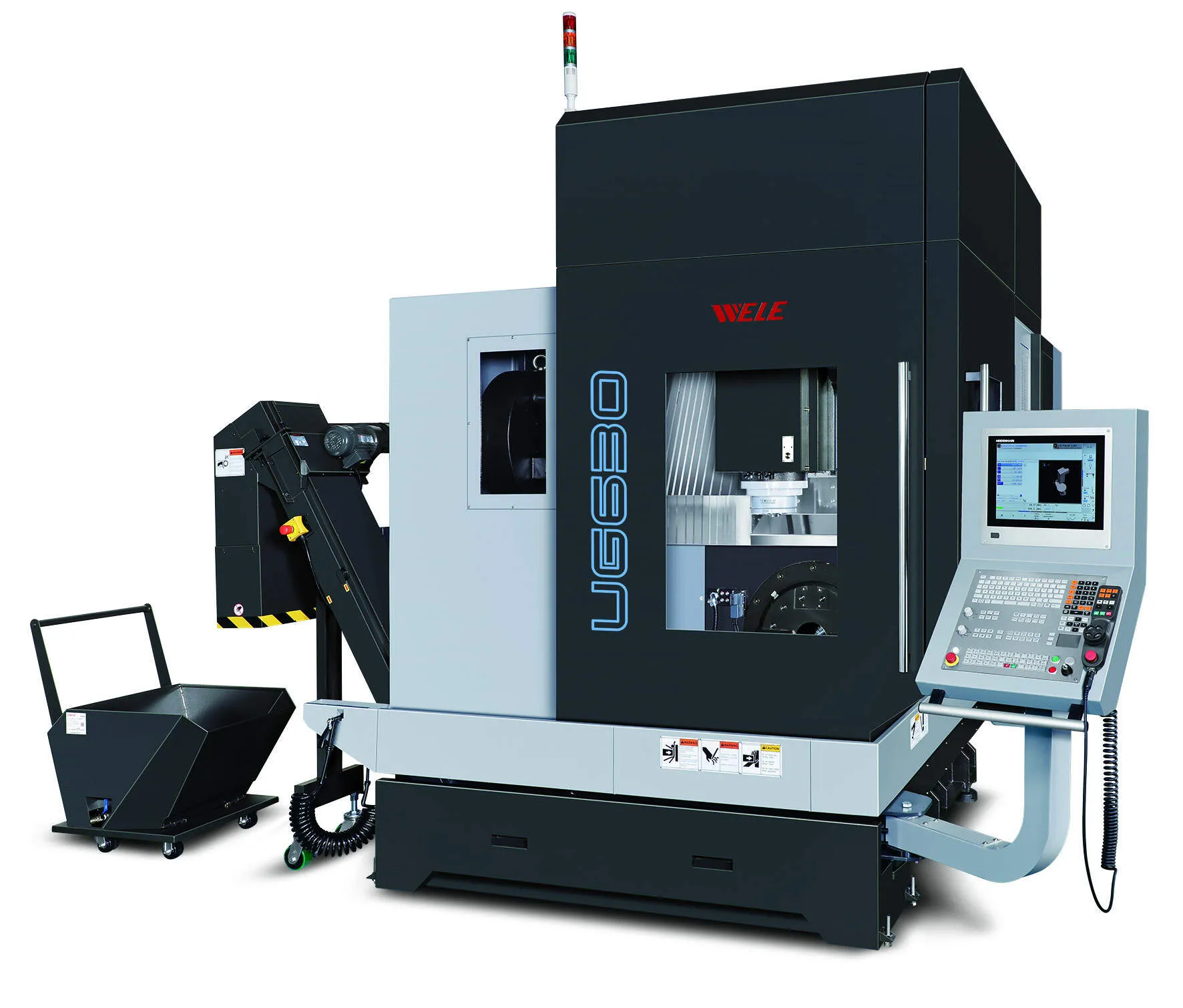

The UG Series delivers an unrivaled blend of quality, reliability, and 5-axis performance, featuring an advanced overhead gantry design with integrated high-precision trunnion rotary table—driven by twin ballscrews on the UG800 for enhanced stability and accuracy.
Request A Quote
Specifications
Specifications
| X-axis Travel |
640 mm / 25.1 in |
| Y-axis Travel (spindle head) |
520 mm / 20.4 in |
| Z-Axis Travel |
460 mm / 18.1 in |
| Distance from Spindle Nose to Table Top |
150-610 mm / 5.9 – 24.0 in |
| Clamping Area |
650 mm / 25.5 in |
| Swiveling range of the B-axis |
-50° / +110° |
| Rotating range of the C-axis |
360° |
| Swiveling speed of the B-axis |
25 RPM |
| Rotating speed of the C-axis |
25 RPM |
| Spindle Nose |
0 – 15,000 RPM |
| Spindle power (cont./30 min.) |
22 kW (25 HP) / 29 kW (35 HP) |
| Spindle bearing bore diameter |
70 mm / 2.75 in |
| Rapid Feedrate (X,Y,Z) |
40 (m/min) / 914 (in/min) |
| X-axis Travel |
31.5” (800 mm) |
| Y-axis Travel (spindle head) |
37.4” (950 mm) |
| Z-Axis Travel |
25.6” (650 mm) |
| A-Axis travel (along X-Axis to rotate) |
+30° / -120° |
| C-Axis travel (along Z-Axis to rotate) |
360° |
| Distance from Spindle Nose to Table Top |
0” to 25.6” (0 mm to 650 mm) |
| Table diameter |
31.5” (800 mm) |
| Maximum Table Load |
2,200 lb (1000 kg) |
| A-Axis output torque (rate/ brake/ max.) |
1,450 / 3,690 / 4,817 ft-lb (1,956 / 5,000 / 6,528 Nm) |
| C-Axis output torque w/ DD motor (rate/ brake/ max.) |
1,328 / 2,435 / 2,450 ft-lb (1,800 / 3,300 / 3,320 Nm) |
| Spindle power (cont./30 min.) |
28 HP / 41.4 HP (21.6 kW / 30.9 kW) |
| Spindle Nose |
Built-in 14,000 RPM (HDH) / 15,000 RPM (FANUC) |
| Spindle Torque |
84.8 ft-lb (115 Nm) (HDH) / 123.1 ft-lb (167 Nm) (FANUC) |
| Spindle Taper |
#40 |
| Rapid Traverse X, Y, & Z Axes |
1,889.8 in/min (48,000 mm/min) |
| A-axis Rapid Traverse |
25 RPM |
| C-axis Rapid Traverse |
100 RPM |
| Maximum Cutting Feedrate |
0.04 – 393.7 in/min (1 – 10,000 mm/min) |
