Brother SPEEDIO W-Series

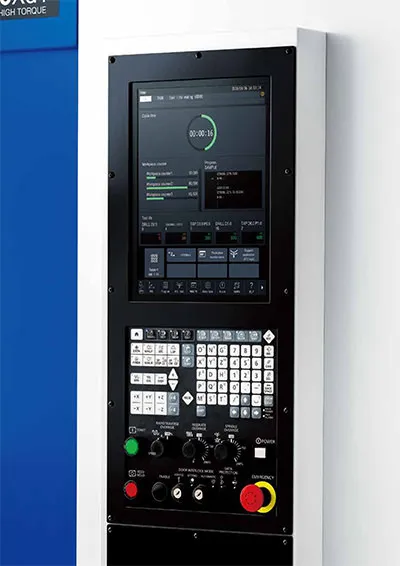

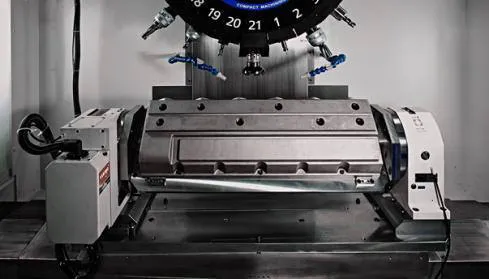

The NEW Brother SPEEDIO W1000Xd1 compact machining center possesses the widest machining envelope and longest travels for a 30 taper machine. This allows users to machine a variety of work from small to large workpieces. The W1000Xd1 bears a new CNC-D00 control with a 15-inch LCD touch panel that enhances usability and provides maximum control. Maximized high-speed is achieved with improved chip-to-chip and tool-to-tool time; reducing average cycle times from 3% to 9% depending on the part features and workpiece size. SPEEDIO is the EVERY SHOP MACHINE.
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 39.4" |
| Y Axis Travel | 19.7" |
| Z Axis Travel | 11.8" |
| * Spindle RPM | 10,000/16,000 |
| Tapping RPM | 6,000/8,000 |
| Rapid Traverse | 1,969 IPM
(2205 Z-Axis) |
| * Cutting Feed rate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) when using high accuracy mode B |

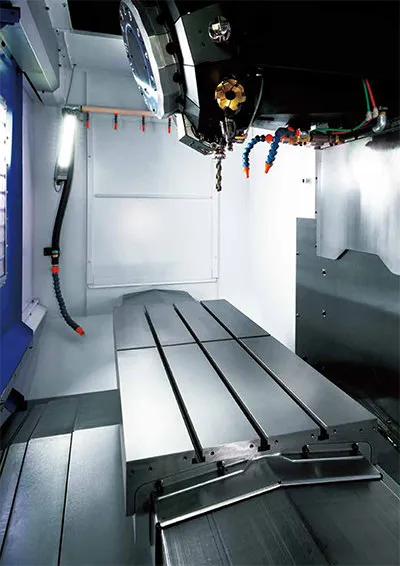

| Table Size | 43.3" x 19.7" |
| Maximum Loading Capacity | 661 lbs |
| ATC Capacity | 14/21 |
| Tool To Tool Time | 0.6 sec |
| Chip to Chip Time | 1.2 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 9.8" |
| Maximum Tool Diameter | 4.3" |
| Maximum Tool Weight | 6.6 Lbs |
